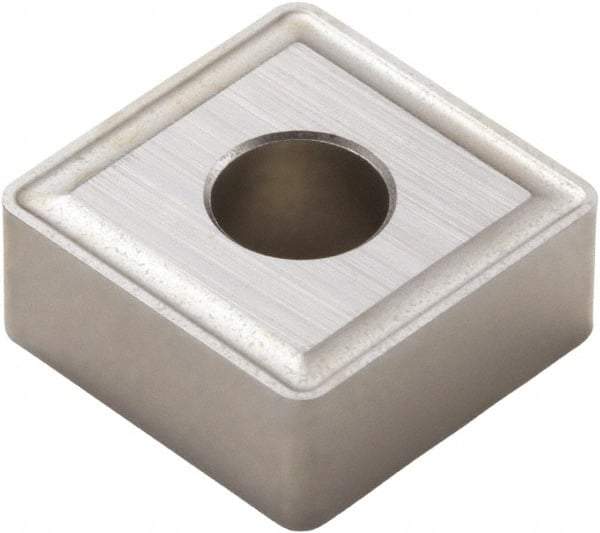

Seco - SNMG866 MR4 Grade 883 Carbide Turning Insert - Uncoated, 90° Square, 1" Inscr Circle, 3/8" Thick, 3/32" Corner Radius
Item #: 57001661
Brand: Seco
Model #: 03385
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMG |
| Insert Size | 866 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Inscribed Circle (Inch) | 1 |
| Thickness (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.3750 |
| Corner Radius (Inch) | 3/32 |
| Corner Radius (Decimal Inch) | 0.0938 |
| Manufacturer's Grade | 883 |
| Coating | Uncoated |
| Chip Breaker | MR4 |
| Hole Diameter (Decimal Inch) | 0.3630 |
| Relief Angle | 0 |
| Included Angle | 90 |
| Maximum Depth of Cut (Decimal Inch) | 0.2750 |
| Insert Holding Method | Pin & Clamp |
| Shape | Square |
