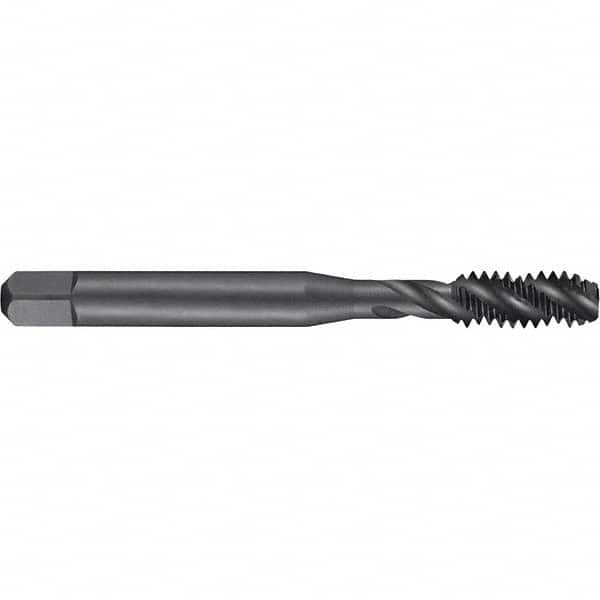

DORMER - 3/8-16 BSW 3 Flute Bottoming Spiral Flute Tap
Item #: 65679979
Brand: DORMER
Model #: 0149157
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Fast Spiral Flutes with 40-53 degree angles are suitable for ductile materials like aluminum and copper; medium to high carbon steels and free machining stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 3/8-16 |
| Chamfer | Bottoming |
| Number of Flutes | 3 |
| Material | High Speed Steel |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 3.1520 |
| Overall Length (mm) | 80.00 |
| Helix Angle | 40 |
| Thread Standard | BSW |
| Material Grade | M2 |
| Thread Length (Decimal Inch) | 0.7092 |
| Thread Length (mm) | 18.00 |
| Flute Type | Fast Spiral |
| Series/List | E533 |
| Tapping Depth (Decimal Inch) | 1.3396 |
| Tapping Depth (mm) | 34.00 |
| Shank Diameter (Decimal Inch) | 0.3940 |
| Shank Diameter (mm) | 10.00 |
| Material Application | Alloy Steel; Aluminum; Aluminum Alloys; Carbon Steel; Free Machining Stainless Steel; Hardened Steel; Magnesium; Nickel Alloys; Stainless Steel; Structural Steel |
