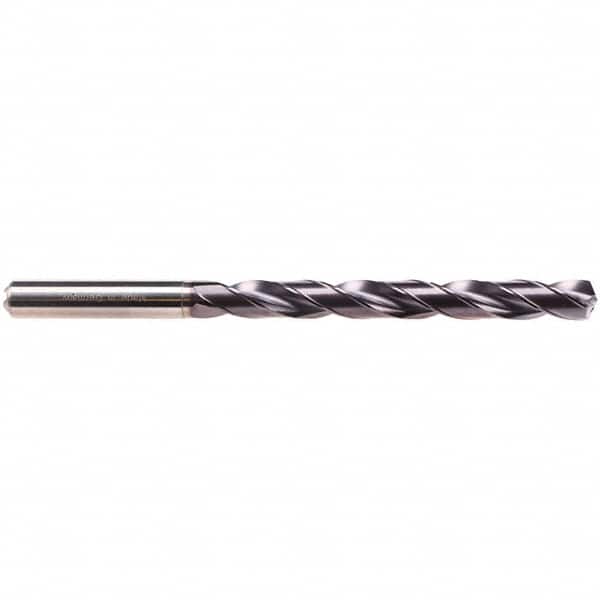

Emuge - 3.35mm 135° Spiral Flute Solid Carbide Taper Length Drill Bit
Item #: 47942040
Brand: Emuge
Model #: TA223344.0335
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 3.35 |
| Drill Bit Size (Decimal Inch) | 0.1319 |
| Drill Point Angle | 135 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiAlN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Through Coolant | Yes |
| Flute Length (mm) | 38.00 |
| Overall Length (mm) | 78.00 |
| Shank Diameter (mm) | 6.00 |
| Flute Length x Diameter Ratio | 8xD |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 6535 (Shank) |
| Material Grade | Sub Micrograin |
| Series/List | EF-DRILL |
| Additional Information | Double Margin Flute |
