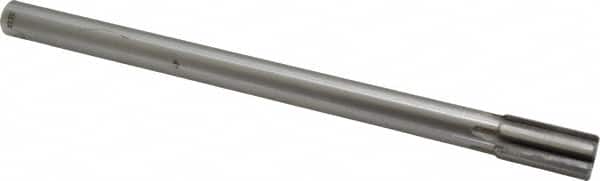

Made in USA - 21/32" Diam, 9/16" Max Diam Straight Shank, 1-1/4" Flute Length, Machine Expansion Reamer
Item #: 72480429
Brand: Made in USA
Model #:
Features and Benefits
Carbide-tips cuts faster than high speed steel. The carbide tip is brazed onto the steel head of a shank. It is commonly used on ferrous and nonferrous metals including cast iron, steel and steel alloys.
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
Straight flutes are used to produce straighter side walls, but offer less chip removal than spiral flutes.
| Product Specifications | |
|---|---|
| Reamer Diameter (Decimal Inch) | 0.6562 |
| Reamer Diameter (Inch) | 21/32 |
| Reamer Material | Carbide-Tipped |
| Shank Type | Straight |
| Flute Type | Straight |
| Overall Length (Inch) | 9 |
| Number of Flutes | 6 |
| Guaranteed Minium Expansion (Decimal Inch) | 0.0100 |
| Maximum Shank Diameter (Inch) | 9/16 |
| Cutting Direction | Right Hand |
| Reamer Finish/Coating | Bright |
| Reamer Diameter Tolerance (Decimal Inch) | 0.0003 to -0.0000 |
| Flute Length (Inch) | 1-1/4 |
