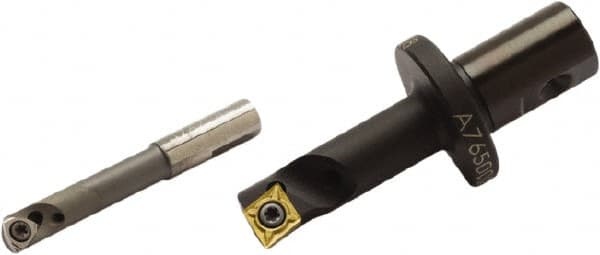

Seco - 10mm Min Bore Diam, 12mm Shank Diam, Indexable Boring Bar - 55mm Max Bore Depth, CC.. 0602.. Insert
Item #: 56999600
Brand: Seco
Model #: 35488
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | AxiaBore |
| Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch) | 0.3940 |
| Minimum Bore Diameter (mm) | 10.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.3937 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 55.00 |
| Maximum Bore Depth (Decimal Inch) | 2.1654 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Insert Compatibility | CC.. 0602.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Lead Angle | 90 |
| Maximum Bore Diameter (mm) | 13.00 |
| Maximum Bore Diameter (Decimal Inch) | 0.5118 |
| Maximum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch) | 0.5120 |
| Center to Cutting Edge (mm) | 4.80 |
| Center to Cutting Edge (Decimal Inch) | 0.1890 |
| Complete Insert Compatibility | CC.. 0602.. |
| Toolholder Material | Carbide |
