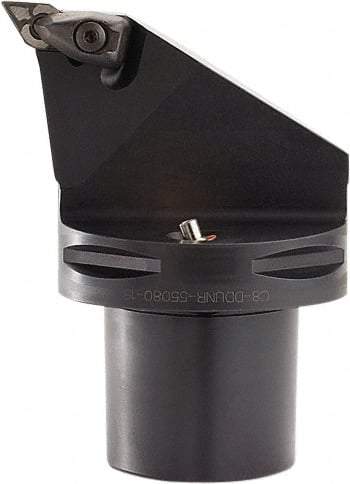

Seco - Left Hand Cut, Size C5, DN.. 1506 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 35mm Ctr to Cutting Edge, 60mm Head Length, Series Seco-Capto
Item #: 56985005
Brand: Seco
Model #: 43504
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C5 |
| Series Name | Seco-Capto |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 60.00 |
| Head Length/Projection (Decimal Inch) | 2.3622 |
| Insert Style | DN.. 1506 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 35.00 |
| Center to Cutting Edge (Decimal Inch) | 1.3780 |
| Insert Holding Method | Clamp |
| Through Coolant | NonThrough Coolant |
| Axial Rake Angle | -6 |
| Neck Diameter (mm) | 50.00 |
| Neck Diameter (Decimal Inch) | 1.9685 |
| Complete Insert Compatibility | DN.. 1506.. |
