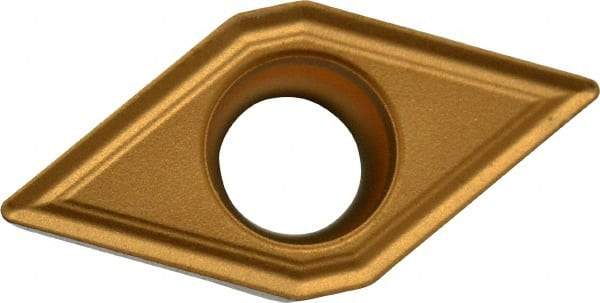

Seco - DCMT32.51 F2 Grade TP40 Carbide Turning Insert - TiC/TiCN/TiN Finish, 55° Diamond, 3/8" Inscr Circle, 5/32" Thick, 1/64" Corner Radius
Item #: 56984107
Brand: Seco
Model #: 18660
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DCMT |
| Insert Size | 32.51 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | TP40 |
| Coating | TiC/TiCN/TiN |
| Material Grade | C5 |
| Chip Breaker | F2 |
| Hole Diameter (Decimal Inch) | 0.1770 |
| Relief Angle | 7 |
| Primary Workpiece Material | P; M |
| Included Angle | 55 |
| Insert Holding Method | Screw |
| Shape | Diamond |
