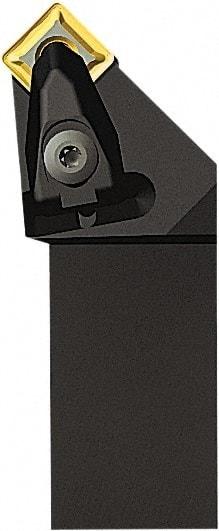

Seco - DSSN, Right Hand Cut, 45° Lead Angle, 40mm Shank Height x 40mm Shank Width, Negative Rake Indexable Turning Toolholder - 213.5mm OAL, SNM..1906.. Insert Compatibility, Series Dual Clamp
Item #: 56970841
Brand: Seco
Model #: 34323
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | DSSN |
| Rake | Negative |
| Rake Angle | -8 |
| Series | Dual Clamp |
| Lead Angle | 45 |
| Shank Width (mm) | 40.00 |
| Shank Width (Decimal Inch) | 1.5748 |
| Shank Height (mm) | 40.00 |
| Shank Height (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 213.50 |
| Overall Length (Decimal Inch) | 8.4055 |
| Insert Compatibility | SNM..1906.. |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 37.70 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.4843 |
| Head Length (mm) | 46.00 |
| Head Length (Decimal Inch) | 1.8110 |
| Insert Inscribed Circle (Decimal Inch) | 0.7500 |
