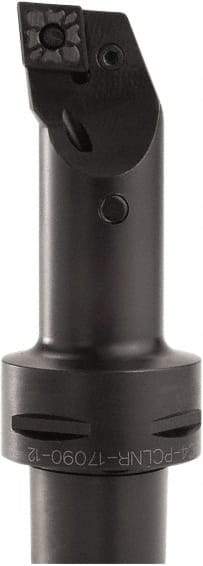

Seco - Right Hand Cut, Size C5, CN.. 43 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 26.92mm Ctr to Cutting Edge, 139.95mm Head Length, Series Seco-Capto
Item #: 56961782
Brand: Seco
Model #: 42930
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C5 |
| Series Name | Seco-Capto |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 139.95 |
| Head Length/Projection (Decimal Inch) | 5.5100 |
| Insert Style | CN.. 43 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 26.92 |
| Center to Cutting Edge (Decimal Inch) | 1.0600 |
| Insert Holding Method | Lever |
| Through Coolant | NonThrough Coolant |
| Axial Rake Angle | -6 |
| Neck Diameter (mm) | 50.04 |
| Neck Diameter (Decimal Inch) | 1.9700 |
| Complete Insert Compatibility | CNGP 430-MF1; CNGP 430.5-M1; CNGP 430.5-MF1; CNGP 430.5F-M1; CNGP 430.5F-MF1; CNGP 430F-MF1; CNGP 431-M1; CNGP 431-MF1; CNGP 431F-MF1; CNGP 432-MF1; CNGP 432F-M1; CNGP 432F-MF1; CNMA 431; CNMA 432; CNMA 432F; CNMA 433; CNMA 434; CNMG; CNMG 430.5-FF2; CNMG |
