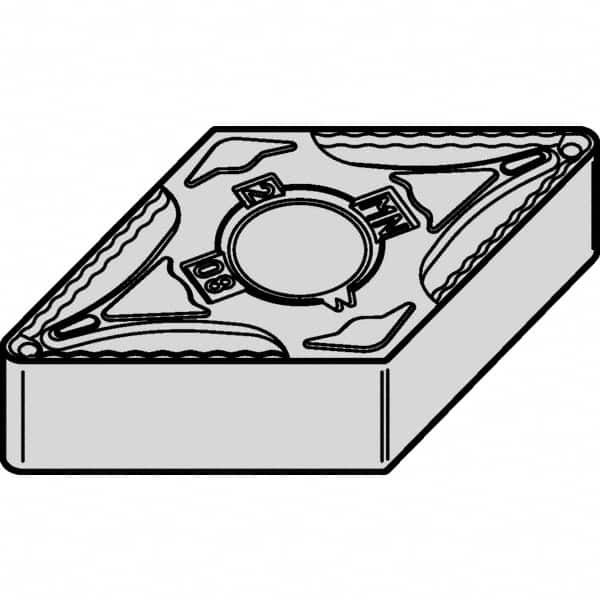

Kennametal - DNMG432 MN Grade KCPK05 Carbide Turning Insert - Al2O3 Finish, 55° Diamond, 1/2" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 56867005
Brand: Kennametal
Model #: 5629536
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMG |
| Insert Size | 432 |
| Material | Carbide |
| Length (mm) | 15.50 |
| Length (Decimal Inch) | 0.6104 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | KCPK05 |
| Coating | Al2O3 |
| Chip Breaker | MN |
| Insert Length (Decimal Inch) | 0.6104 |
| Hole Diameter (mm) | 5.16 |
| Hole Diameter (Decimal Inch) | 0.2031 |
| ISO Number | DNMG150408MN |
| Relief Angle | 0 |
| Coating Process | CVD |
| Primary Workpiece Material | P |
| Included Angle | 55 |
| Insert Hand | Neutral |
| Insert Holding Method | Pin & Clamp |
| Multi Use Application | Turning |
| Shape | Diamond |
