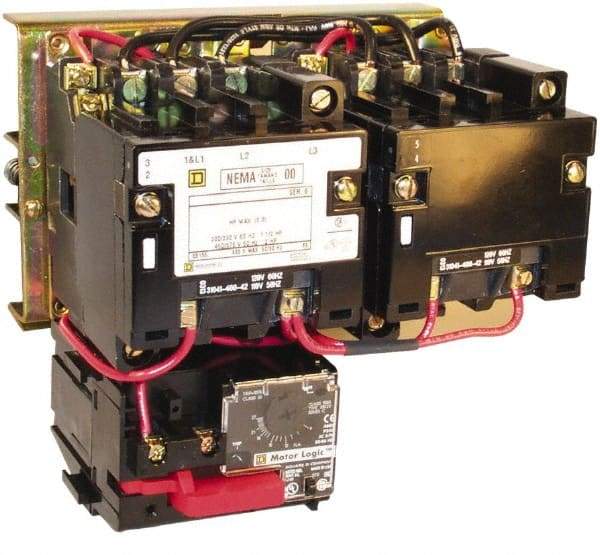

Square D - 220 Coil VAC at 50 Hz, 240 Coil VAC at 60 Hz, 27 Amp, NEMA Size 1, Reversible Open Enclosure NEMA Motor Starter - 3 Phase hp: 10 at 460 VAC, 10 at 575 VAC, 7-1/2 at 200 VAC, 7-1/2 at 230 VAC
Item #: 56824758
Brand: Square D
Model #: 8736SCO7V03
Exact Tooling IR#: 04
Features and Benefits
Open housings are designed to disconnect the motor from the line at the time of starting or stopping of equipment. Ideal for inertial loads and they are finger safe.
Reversing starters are designed with three individual lines that connect to and run voltage through a motor. Each line alternates in a sequence as they reach their voltage peak. They are used to reverse the rotation of a motor.
Open - no enclosures are starters without a protective enclosure.
| Product Specifications | |
|---|---|
| Amperage | 27 |
| NEMA Size | 1 |
| Coil Voltage | 220 VAC @ 50 Hz; 240 VAC @ 60 Hz |
| Enclosure Type | Open |
| Action | Reversible |
| NEMA Enclosure Rating | Open - No Enclosure |
| Horsepower at 3 Phase | 10 @ 460 VAC; 10 @ 575 VAC; 7-1/2 @ 200 VAC; 7-1/2 @ 230 VAC |
| Standards Met | CSA; NEMA; RoHS Compliant; UL Listed |
