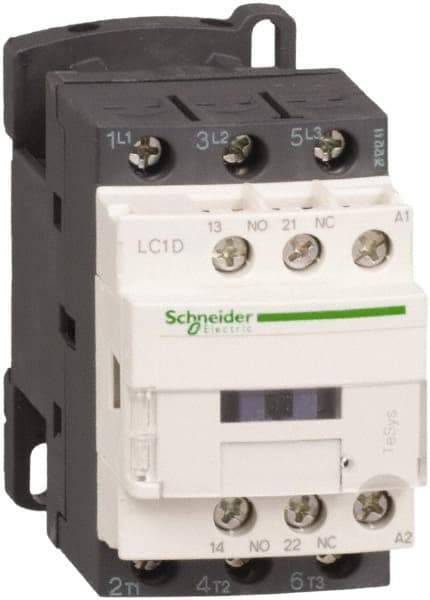

Schneider Electric - 3 Pole, 415 Coil VAC at 50/60 Hz, 25 Amp at 440 VAC and 9 Amp at 440 VAC, Nonreversible IEC Contactor - 1 Phase hp: 0.5 at 115 VAC, 1 at 230/240 VAC, 3 Phase hp: 2 at 200/208 VAC, 2 at 230/240 VAC, 5 at 460/480 VAC, 7.5 at 575/600 VAC
Item #: 56802184
Brand: Schneider Electric
Model #: LC1D09N7
Exact Tooling IR#: 04
Features and Benefits
Non-reversing contactors are designed with one phase line that connects to and runs voltage through the motor. The contactor is used to turn a motor on and off.
| Product Specifications | |
|---|---|
| Number of Poles | 3 |
| Coil Voltage | 415 VAC @ 50/60 Hz |
| Amperage | 25 @ 440 VAC; 9 @ 440 VAC |
| Action | NonReversible |
| Horsepower at 1 Phase | 0.5 @ 115 VAC; 1 @ 230/240 VAC |
| Horsepower at 3 Phase | 2 @ 200/208 VAC; 2 @ 230/240 VAC; 5 @ 460/480 VAC; 7.5 @ 575/600 VAC |
| Auxiliary Contacts | NO/NC |
| Overall Height (mm) | 77 |
| Overall Width (mm) | 45 |
| Overall Depth (mm) | 86 |
| Standards Met | Bureau Veritas; CCC; CSA; CSA C22.2 No. 14; DNV; EN/IEC 60947-4-1; EN/IEC 60947-5-1; GL; GOST; LROS; RINA; RoHS Compliant; UL 508; UL Listed |
