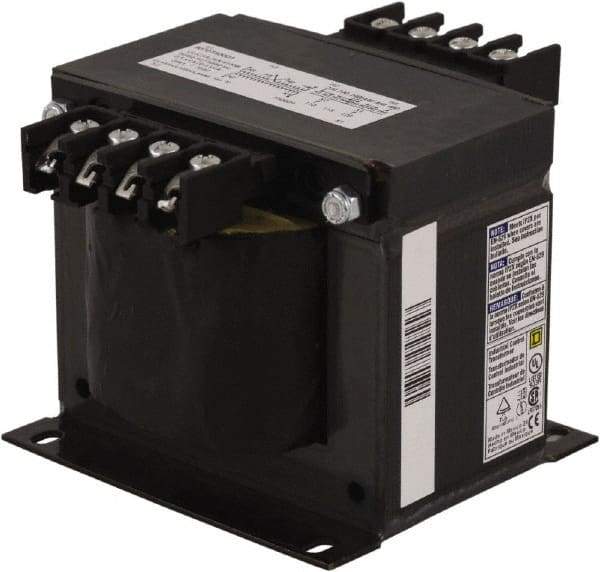

Square D - 500 VA, Top Mount Fuse Block Control Transformer - 50/60 Hz, 5.61 Inch Deep x 4.51 Inch High
Item #: 56795701
Brand: Square D
Model #: 9070T500D65
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Power Rating (VA) | 500 |
| Input Voltage | 200/220/440 V; 208/230/460 V; 217/240/480 V |
| Output Voltage | 23/110 V; 24/115 V; 25/120 V |
| Frequency Rating (Hz) | 50/60 |
| Mounting Type | Panel |
| Fuse Location | Top Mount Fuse Block |
| Overall Width (Decimal Inch) | 5-1/4 |
| Overall Width (mm) | 133 |
| Overall Height (mm) | 115 |
| Overall Height (Decimal Inch) | 4.5100 |
| Overall Depth (mm) | 143 |
| Overall Depth (Decimal Inch) | 5.6100 |
| Standards Met | CSA File No. LR37055 Guide 184-N-90; cUL Listed; EN:947923 EN 61 558/01.89 (TUV Ref:00941-RAG/sg E9371495E01); EN:9579078 EN 61 558/01.89 (TUV Ref:00941-RAG/sg E9471921E01); ISO 9001; NOM; UL Listed File No. E61239 Guide XPTQ2 |
