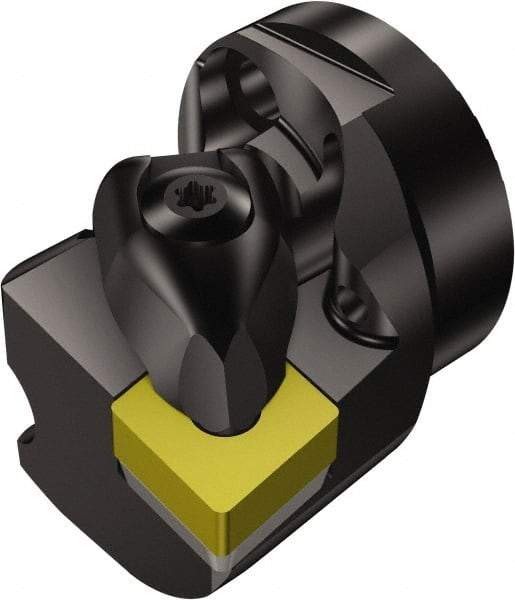

Sandvik Coromant - Left Hand Cut, Size 40, CNMG 643 Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 34mm Ctr to Cutting Edge, 42mm Head Length, Through Coolant, Series T-Max P
Item #: 56731912
Brand: Sandvik Coromant
Model #: 5764260
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | 40 |
| Series Name | T-Max P |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 42.00 |
| Head Length/Projection (Decimal Inch) | 1.6535 |
| Insert Style | CNMG 643 |
| Center to Cutting Edge (mm) | 34.00 |
| Center to Cutting Edge (Decimal Inch) | 1.3386 |
| Insert Holding Method | Wedge Clamp |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 57.00 |
| Minimum Hole Diameter (Decimal Inch) | 2.2441 |
| Complete Insert Compatibility | CNMG 19 06 12 |
