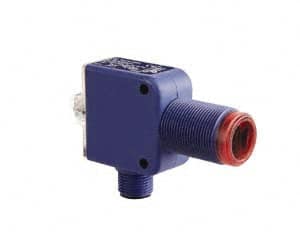

Telemecanique Sensors - M12 Connector, 15m Nominal Distance, Shock and Vibration Resistant, Diffused Photoelectric Sensor - 12 to 24 VDC, 250 Hz, Plastic, 2.36 Inch Wide x 1.72 Inch High
Item #: 56703960
Brand: Telemecanique Sensors
Model #: XUN0APSNM12
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Sensor Type | Diffused |
| Output Circuit Type | PNP |
| Maximum Nominal Sensing Distance (Meters) | 15.00 |
| Connector Type | M12 |
| Voltage | 12-24 VDC |
| Frequency Rating (Hz) | 250 |
| Ingress Protection Rating | IP67 |
| Housing Material | Plastic |
| Resistance Features | Shock Resistant; Vibration Resistant |
| Overall Width/Diameter (mm) | 59.94 |
| Overall Width/Diameter (Decimal Inch) | 2.3600 |
| Overall Height (mm) | 43.85 |
| Overall Height (Decimal Inch) | 1.7200 |
| Shape | Combination |
| Maximum Operating Temperature (F) | 131 |
| Minimum Operating Temperature (F) | -13 |
| Standards Met | CE; CSA Certified; IEC 60068-2-27; IEC 60068-2-6; IEC 60529; UL Listed |
