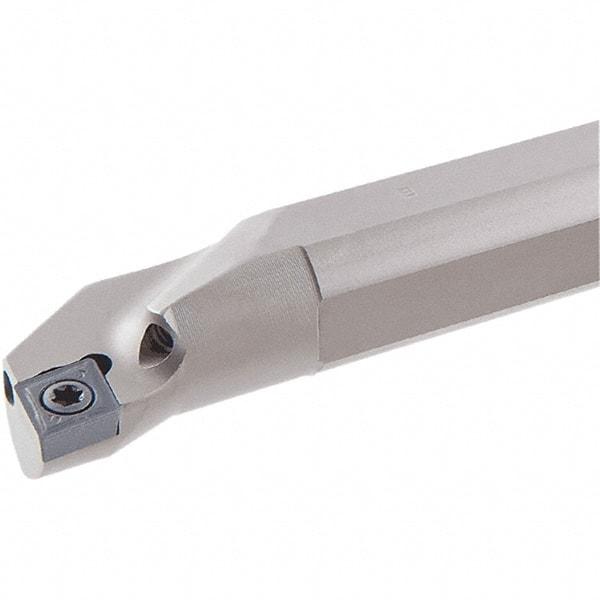

Iscar - 13mm Min Bore Diam, 140mm OAL, 10mm Shank Diam, S-SCLC Indexable Boring Bar - 19mm Max Bore Depth, CC.. 09T3.. Insert, Screw Holding Method
Item #: 56555352
Brand: Iscar
Model #: 3600852
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-SCLC |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 13.00 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 19.00 |
| Overall Length (mm) | 140.00 |
| Shank Diameter (mm) | 10.00 |
| Insert Compatibility | CC.. 09T3.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Center to Cutting Edge (mm) | 7.00 |
| Insert Inscribed Circle (mm) | 4.40 |
| Rake Angle | -7 |
| Complete Insert Compatibility | CC..09.. |
| Toolholder Material | Steel |
