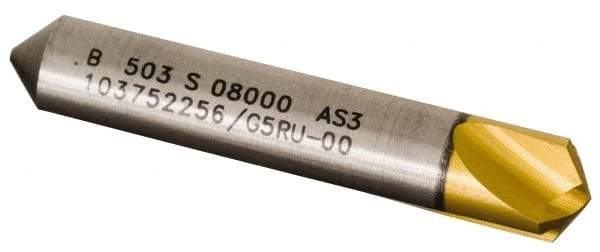

Kennametal - 10mm Diam, 132°, HTS DFR High Speed Steel Pilot Drill Insert - Style B513, TiN Coated
Item #: 56495872
Brand: Kennametal
Model #: 1940741
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and non-ferrous materials.
Titanium nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness-resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Series | HTS DFR |
| Material | High Speed Steel |
| Insert Style | B513 |
| Diameter (mm) | 10.00 |
| Diameter (Decimal Inch) | 0.3937 |
| Manufacturer's Grade | AS3 |
| Included Angle | 132 |
| Overall Length (mm) | 54.50 |
| Overall Length (Decimal Inch) | 2.1457 |
| Coating | TiN |
