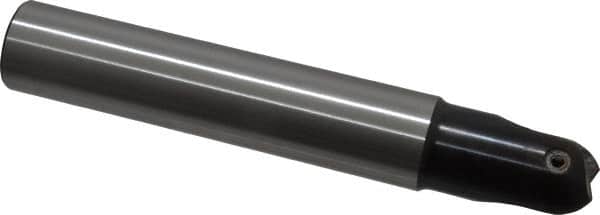

LMT - 1" Cut Diam, 1.77" Max Depth of Cut, 1" Shank Diam, 6.3" OAL, Indexable Ball Nose End Mill - 1.77" Head Length, Straight Shank, EBG-R Toolholder, WPR 1000 Insert
Item #: 56445992
Brand: LMT
Model #: 88121
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Depth of Cut (Decimal Inch) | 1.7700 |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | WPR 1000 |
| Toolholder Style | EBG-R |
| Overall Length (Decimal Inch) | 6.3000 |
| Insert Holding Method | Screw |
| Toolholder Material | High Speed Steel |
| Weldon Flat | No |
| Tapered Neck | No |
| Head Length (Decimal Inch) | 1.7700 |
| Neck Diameter (Decimal Inch) | 0.8800 |
