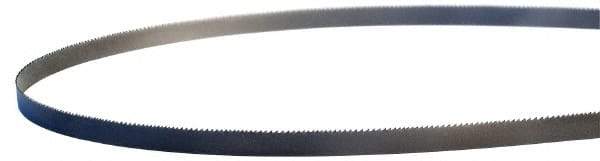

Lenox - 4 TPI, 5' 4-1/2" Long x 1/2" Wide x 0.035" Thick, Welded Band Saw Blade - Bi-Metal, Toothed Edge, Raker Tooth Set, Flexible Back, Contour Cutting
Item #: 56380223
Brand: Lenox
Model #: 81774
Exact Tooling IR#: 04
Features and Benefits
Bi-metal blades feature a toothed edge made from high speed steel (HSS) attached to a flexible steel backing through an electron-beam welding process. This configuration results in a blade that makes precise cuts while resisting breakage.
The cutting surface of a toothed edge is composed of a row of pointed teeth. Common tooth variations include the number of teeth per inch and pitch pattern. They are used on ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Blade Material | Bi-Metal |
| Tooth Material | M 42 HSS |
| Blade Length (Feet) | 5' 4-1/2" |
| Teeth Per Inch | 4 |
| Blade Width (Inch) | 1/2 |
| Blade Thickness (Decimal Inch) | 0.0350 |
| Cutting Edge Style | Toothed Edge |
| Tooth Set | Raker |
| Back Material | Alloy Steel |
| Back Type | Flexible Back |
| Tooth Form | Hook |
| Pitch Pattern | Constant |
| Material Grade | M42 |
| Contour Cutting | Yes |
