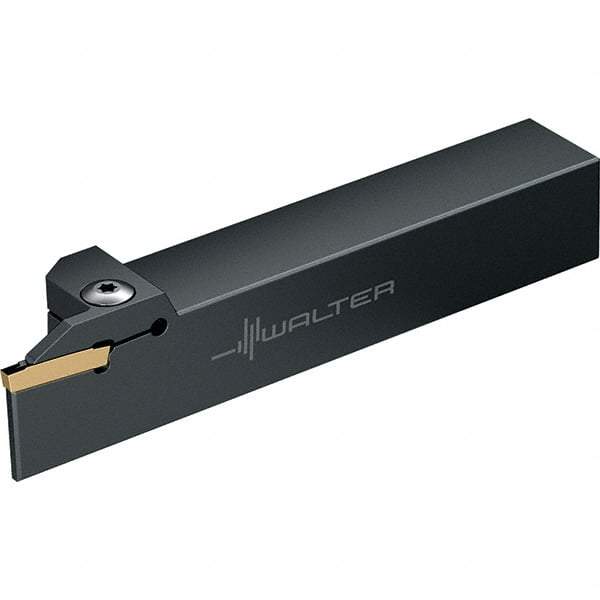

Walter - External Thread, 0.315" Max Depth of Cut, 131.5mm OAL, Right Hand Indexable Grooving Cutoff Toolholder - 16mm Shank Height x 16mm Shank Width, GX16-1E2/F2.. Insert Style, G1011 Toolholder Style
Item #: 56279987
Brand: Walter
Model #: 5950238
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Maximum Groove Width (Decimal Inch) | 0.0787 |
| Maximum Groove Width (mm) | 2.00 |
| Overall Length (Decimal Inch) | 5.1772 |
| Overall Length (mm) | 131.50 |
| Toolholder Style | G1011 |
| Insert Compatibility | GX16-1E2/F2.. |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Screw |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6378 |
| Head Length (mm) | 35.50 |
| Head Length (Decimal Inch) | 1.3976 |
| Shank Length (Decimal Inch) | 3.7795 |
| Shank Length (mm) | 96.00 |
| Complete Insert Compatibility | GX16-1E200N020-CF6; GX16-1E200N020-GD3; GX16-1E200N020-UA4; GX16-1E200N020-UF4; GX16-1E200N02-CE4; GX16-1E200N02-CF5; GX16-1E200N02-CF6; GX16-1E200N02-GD3; GX16-1E200N02-GD6; GX16-1E200N02-UD6; GX16-1E200N02-UF4; GX16-1E200N10-RD4; GX16-1E200R/L6-CE4 |
