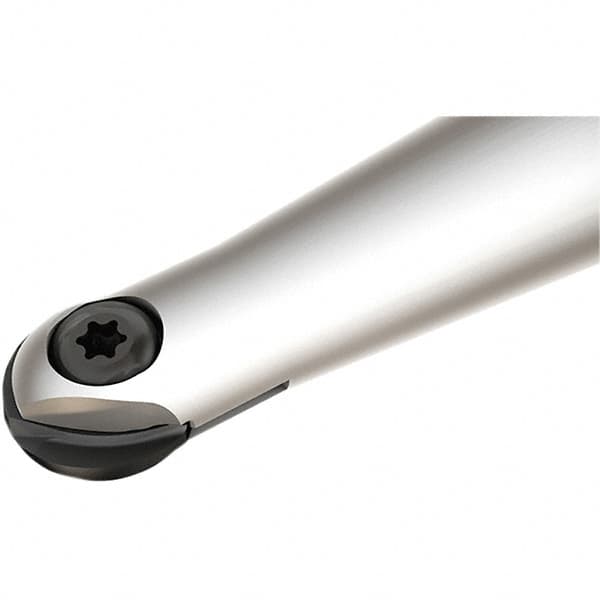

Iscar - 20mm Cut Diam, 20mm Shank Diam, 150mm OAL, Indexable Ball Nose End Mill - 60mm Head Length, Straight Shank, HCM D20 Toolholder, HBF-QF, HBR-QF, HCD-QF, HCR Insert
Item #: 56225303
Brand: Iscar
Model #: 3103577
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 20.00 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | HBF-QF; HBR-QF; HCD-QF; HCR |
| Toolholder Style | HCM D20 |
| Series | BallPlus; FlexFit |
| Overall Length (mm) | 150.00 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Tapered Neck | No |
| Number of Flutes | 1 |
| Head Length (mm) | 60.00 |
| Neck Diameter (Decimal Inch) | 0.7090 |
