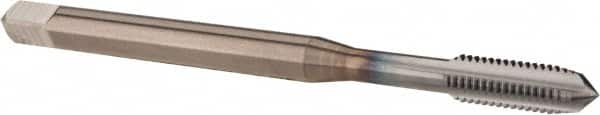

OSG - #10-32 UNF 2B 4 Flute TiCN Finish Solid Carbide Straight Flute Machine Tap - Modified Bottoming, Right Hand Thread, 70mm OAL, 7/8" Thread Length, Oversize
Item #: 56202385
Brand: OSG
Model #: 3110508
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming is similar to bottoming, but the chamfer is longer and has more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steels, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (Inch) | #10-32 |
| Class of Fit | 2B |
| Number of Flutes | 4 |
| Chamfer | Modified Bottoming |
| Material | Solid Carbide |
| Finish/Coating | TiCN |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNF |
| Overall Length (mm) | 70.00 |
| Oversize | No |
| Series/List | 311 |
| Thread Length (Inch) | 7/8 |
| Shank Diameter (Decimal Inch) | 0.1940 |
| Square Size (Decimal Inch) | 0.1520 |
| Material Application | CoCr; Hardened Steel |
