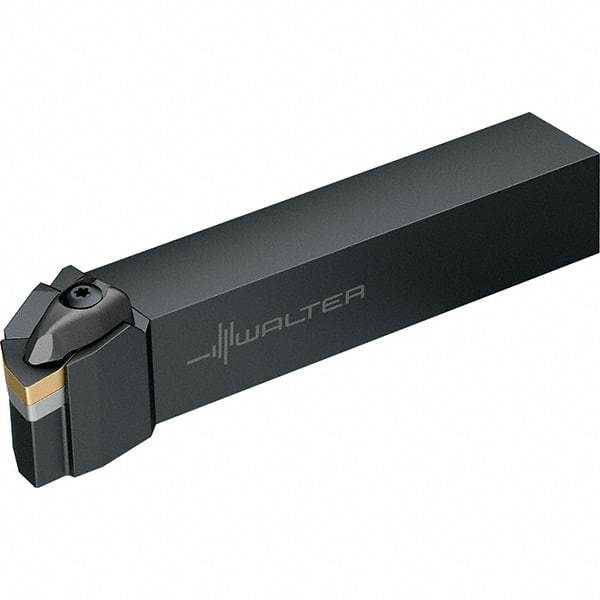

Walter - DWLN, Right Hand Cut, 3/4" Shank Height x 3/4" Shank Width, Negative Rake Indexable Turning Toolholder - 5" OAL, WN..0604.., WN..33.. Insert Compatibility, Series Walter Turn
Item #: 56054000
Brand: Walter
Model #: 5097593
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | DWLN |
| Rake | Negative |
| Series | Walter Turn |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Height (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 5.0000 |
| Insert Compatibility | WN..0604..; WN..33.. |
| Multi-Use Tool | No |
| Insert Holding Method | Hole & Top Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Head Length (Decimal Inch) | 1.9500 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Width (mm) | 6.50 |
| Insert Width (Decimal Inch) | 0.2560 |
