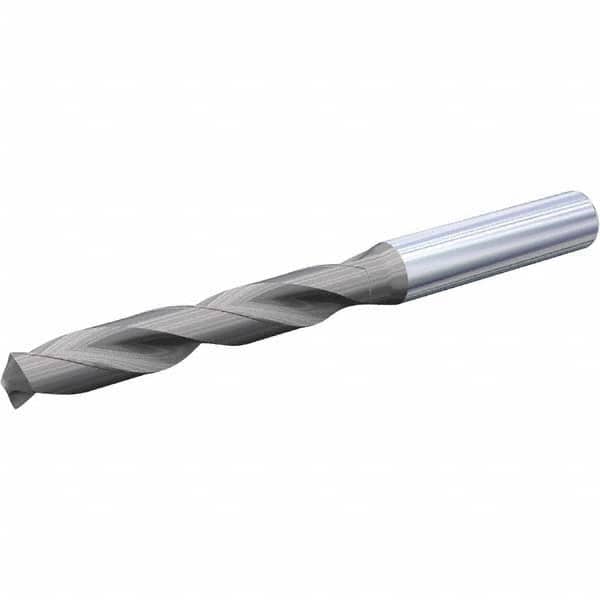

Kennametal - 12.3mm 140° Solid Carbide Screw Machine Drill Bit
Item #: 12251757
Brand: Kennametal
Model #: 6781396
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.4843 |
| Drill Bit Size (mm) | 12.30 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiN/AlTiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 60.00 |
| Overall Length (mm) | 107.00 |
| Flute Length x Diameter Ratio | 3xD |
| Shank Diameter (mm) | 14.00 |
| Maximum Drilling Depth (mm) | 43.00 |
| Shank Length (mm) | 45.00 |
| Number of Flutes | 2 |
| Drill Point Length (mm) | 2.58 |
| Drill Tip Finish/Coating | TiN/AlTiN |
| Through Coolant | No |
| Drill Bit Grade | KCP15B |
| Material Grade | KCP15B |
| Series/List | HPX |
