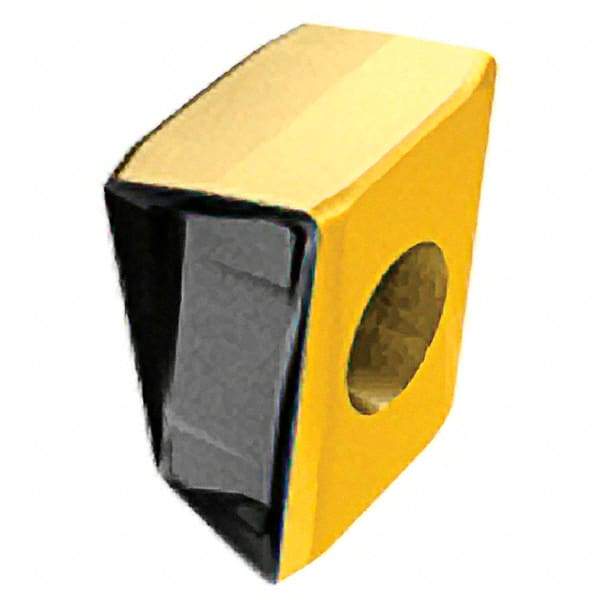

Iscar - T490 LNMT080416 PNR Grade IC808 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 7.29mm Thick, 1.6mm Corner Radius
Item #: 55912174
Brand: Iscar
Model #: 5607681
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | T490 LNMT |
| Insert Size | 080416 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Width (mm) | 4.24 |
| Width (Decimal Inch) | 0.1670 |
| Length (mm) | 8.59 |
| Length (Decimal Inch) | 0.3380 |
| Thickness (mm) | 7.29 |
| Thickness (Decimal Inch) | 0.2870 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Coating Process | PVD |
| Shape | Tangential |
| Chipbreaker | PNR |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Cutting Edge Style | Helical |
| Manufacturers Catalog Number | T490 LNMT 080416PNR |
| ISO Number | T490 LNMT 080416PNR |
| ANSI Number | T490 LNMT 080416PNR |
