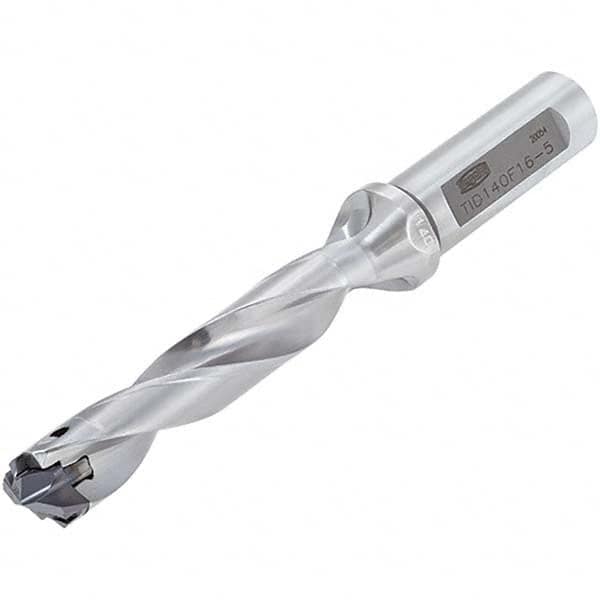

Replaceable Tip Drill: 0.433 to 0.449'' Drill Dia, 2.165″ Max Depth, 0.625'' Shank Uses DMP110, DMP111, DMP112, DMP113 & DMP114 Inserts, 4.984″ OAL, Through Coolant
Item #: 55900633
Brand: Tungaloy
Model #: 6706813
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.4330 |
| Maximum Drill Diameter (Decimal Inch) | 0.4490 |
| Maximum Drill Depth (Decimal Inch) | 2.1650 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Compatible Insert Style | DMP112; DMP111; DMP110; DMP114; DMP113 |
| Overall Length (Decimal Inch) | 4.9840 |
| Series | DrillMeister |
| Toolholder Style | TID-F L/D |
| Flute Length (Decimal Inch) | 2.1650 |
| Body Length (Decimal Inch) | 3.0940 |
| Shank Length (Decimal Inch) | 1.8900 |
| Tool Application | Drilling; Holemaking |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M |
| Secondary Workpiece Material | Non-Ferrous Metal |
| Secondary Workpiece Material Code | N |
| Coolant Through | Yes |
