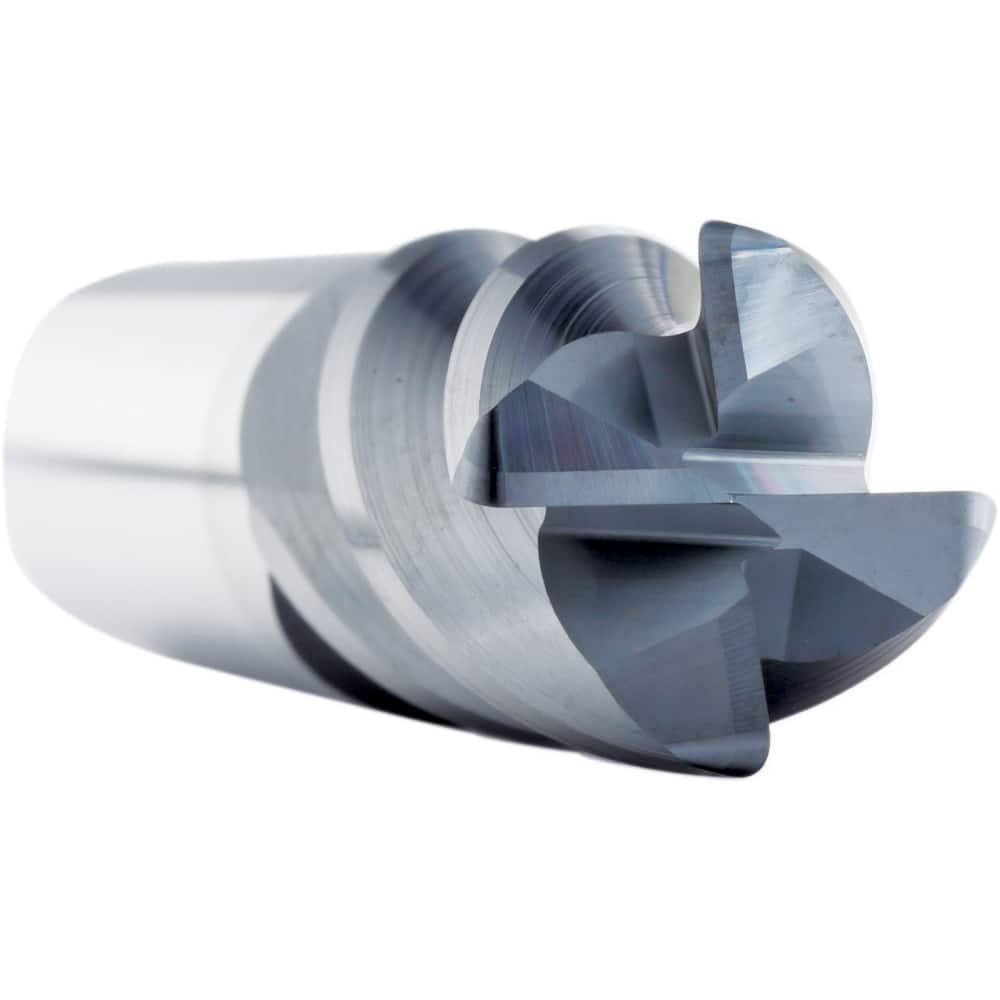

Supermill - Square End Mills Mill Diameter (Inch): 15/32 Mill Diameter (Decimal Inch): 0.4688
Item #: 40559171
Brand: Supermill
Model #: SAP468
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Aluminum chromium nitride (AlCrN) has a higher heat resistance than AlTiN. It is commonly used for machining aircraft and aerospace material, nickel alloy, stainless steel, titanium, cast iron and carbon steel.
Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
Product Specifications
Square End Mills; Mill Diameter (Inch): 15/32 ; Mill Diameter (Decimal Inch): 0.4688 ; Number of Flutes: 4 ; Length of Cut (Inch): 1 ; Length of Cut (Decimal Inch): 1.0000 ; Material: Solid Carbide
| Mill Diameter (Inch) | 15/32 |
| Mill Diameter (Decimal Inch) | 0.4688 |
| Number of Flutes | 4 |
| Length of Cut (Inch) | 1 |
| Length of Cut (Decimal Inch) | 1.0000 |
| Material | Solid Carbide |
| Finish/Coating | AlCrN |
| Shank Diameter (Inch) | 1/2 |
| Single or Double End | Single |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.00000 |
| Center Cutting | Center Cutting |
| Cutting Direction | Right Hand |
| Helix Angle | 35 |
| Variable Helix | No |
| Variable Index | Yes |
| Material Grade | Micrograin |
| Chipbreaker | No |
| Series/List | SAP |
