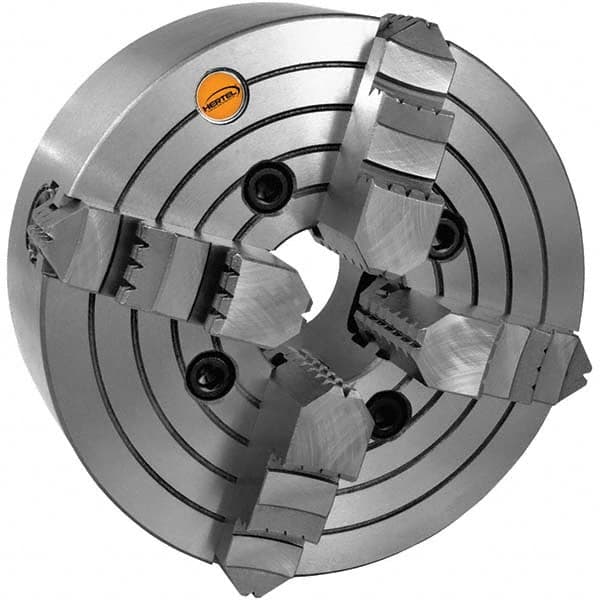

Hertel - Manual Lathe Chucks Chuck Type: Independent Nominal Chuck Size: 10
Item #: 97018964
Brand: Hertel
Model #:
Features and Benefits
Independent chucks are designed with jaws that move independantly of one another.
Cast iron also called semi-steel is the industry standard for chuck body material.
Product Specifications
Manual Lathe Chucks; Chuck Type: Independent ; Nominal Chuck Size: 10 ; Number of Jaws: 4 ; Mount: Plain Back ; Through-Hole Diameter (Decimal Inch): 2.5590 ; Body Material: Cast Iron (Semi-Steel)
| Chuck Type | Independent |
| Nominal Chuck Size | 10 |
| Number of Jaws | 4 |
| Mount | Plain Back |
| Through-Hole Diameter (Decimal Inch) | 2.5590 |
| Body Material | Cast Iron (Semi-Steel) |
| Reversible Jaws | Reversible Jaws |
| Chuck Diameter (Inch) | 10 |
| Minimum Jaw Capacity (Inch) | 25/64 |
| Maximum Jaw Capacity (Inch) | 1-27/32 |
| Jaw Height (Inch) | 1-23/64 |
| Adjustable | No |
| Jaw Type | Solid Jaws |
| Axial Runout (Decimal Inch) | 0.0010 |
| Body Length (Inch) | 2-61/64 |
| Maximum RPM | 1500 |
