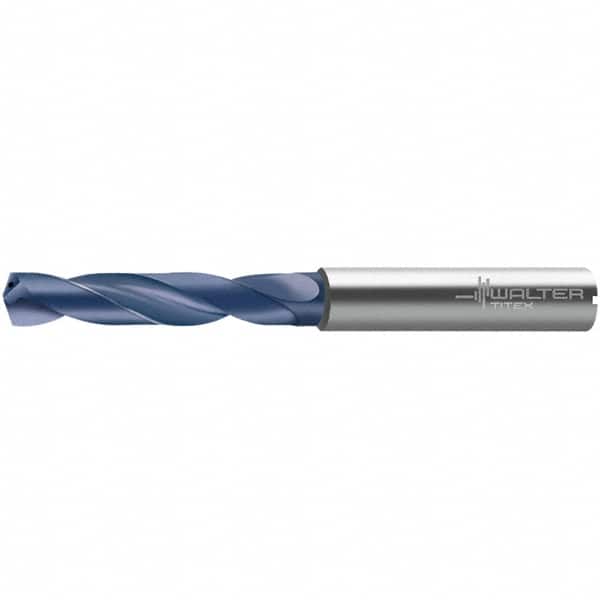

Walter-Titex - 5.2mm 140° Solid Carbide Screw Machine Drill Bit
Item #: 47332044
Brand: Walter-Titex
Model #: 6968760
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.2047 |
| Drill Bit Size (mm) | 5.20 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Flute Length (mm) | 28.00 |
| Flute Length (Decimal Inch) | 1.1020 |
| Overall Length (mm) | 66.00 |
| Overall Length (Decimal Inch) | 2.5980 |
| Flute Length x Diameter Ratio | 3xD |
| Shank Diameter (mm) | 6.00 |
| Shank Diameter (Decimal Inch) | 0.2360 |
| Maximum Drilling Depth (mm) | 20.00 |
| Maximum Drilling Depth (Decimal Inch) | 0.7870 |
| Number of Flutes | 2 |
| Drill Point Length (mm) | 0.95 |
| Drill Point Length (Decimal Inch) | 0.0370 |
| Drill Tip Finish/Coating | TiNAl |
| Through Coolant | Yes |
| Material Grade | Carbide |
| Series/List | DC150-03-A1 |
