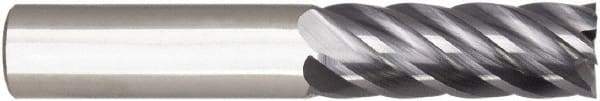

Niagara Cutter - 1/8", 5/16" LOC, 1/4" Shank Diam, 2" OAL, 6 Flute, Solid Carbide Square End Mill - Single End, AlTiN Finish, Spiral Flute, 38° Helix, Right Hand Cut, Right Hand Flute, Series S638
Item #: 55796601
Brand: Niagara Cutter
Model #: N15378
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Aluminum titanium nitride (AlTiN) is one of the most abrasive resistant and hardest coatings. It is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel.
Non-Center Cutting applications have peripheral teeth allowing for the user to side (radial) cut or contour an exterior surface. Used in applications where plunge cutting is not necessary.
| Product Specifications | |
|---|---|
| Mill Diameter (Inch) | 1/8 |
| Number of Flutes | 6 |
| Length of Cut (Inch) | 5/16 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Shank Diameter (Inch) | 1/4 |
| Single or Double End | Single |
| Overall Length (Inch) | 2 |
| Center Cutting | NonCenter Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 38.00 |
| Flute Type | Spiral |
| Length Type | Long |
| Helix Style | Medium |
| Material Grade | Micrograin |
| Chipbreaker | No |
| Extended Reach | No |
| Series/List | S638 |
