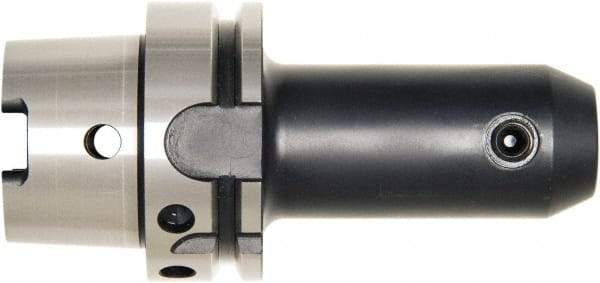

Bilz - HSK63A 1" Shank Diam Taper Shank 1" Hole End Mill Holder/Adapter - 2" Nose Diam, 4.33" Projection, Through-Spindle, Through-Bore & DIN Flange Coolant
Item #: 55774863
Brand: Bilz
Model #: 66652166M
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | HSK63A |
| Hole Diameter (Inch) | 1 |
| Nose Diameter (Inch) | 2 |
| Projection (Decimal Inch) | 4.3300 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 66.00 |
| Shank Diameter (Inch) | 1 |
| Overall Length (Decimal Inch) | 5.5900 |
| Balanced to (RPM) | 20000 |
| TIR (mm) | 0.003 |
| Coolant Type | Through-Spindle, Through-Bore & DIN Flange |
