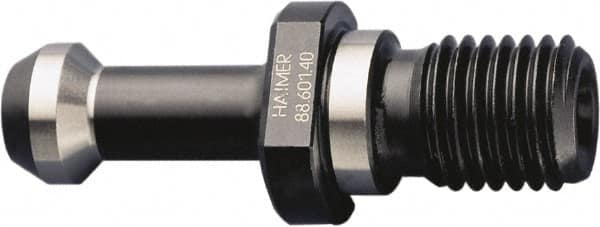

HAIMER - C Style, BT40 Taper, M16x2 Thread, 15° Angle Radius, High Torque Retention Knob - 2-1/8" OAL, 3/4" Knob Diam, 0.9055" Flange Thickness, 1.14" from Knob to Flange, 0.6693" Pilot Diam
Item #: 55736482
Brand: HAIMER
Model #: 88.701.40
Exact Tooling IR#: 04
Features and Benefits
High torque knobs improve the fit of the toolholder with the spindle. They prevent the small end of the toolholder from expanding by using a precision pilot and place the force of the threads into a deeper cross-section of material in the toolholder.
| Product Specifications | |
|---|---|
| Type | High Torque |
| Taper Size | BT40 |
| Thread Size | M16x2 |
| Angle Radius | 15.00 |
| Knob Diameter (Decimal Inch) | 0.7480 |
| Through Coolant | No |
| Style | C |
| Neck Diameter (Decimal Inch) | 0.5511 |
| Pilot Diameter (Decimal Inch) | 0.6693 |
| Overall Length (Decimal Inch) | 2.1260 |
| Knob to Flange Length (Decimal Inch) | 1.1400 |
| Flange Thickness (Decimal Inch) | 0.9055 |
