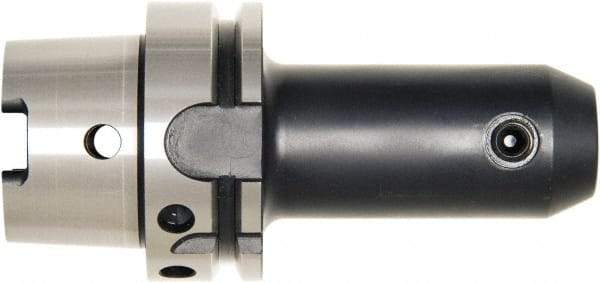

Bilz - HSK100A 1/8" Shank Diam Taper Shank 1/8" Hole End Mill Holder/Adapter - 0.689" Nose Diam, 6.3" Projection, Through-Spindle, Through-Bore & DIN Flange Coolant
Item #: 55667190
Brand: Bilz
Model #: 66652191M
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | HSK100A |
| Hole Diameter (Inch) | 1/8 |
| Nose Diameter (Inch) | 0.6890 |
| Projection (Decimal Inch) | 6.3000 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 17.50 |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Decimal Inch) | 8.2700 |
| Balanced to (RPM) | 20000 |
| TIR (mm) | 0.003 |
| Coolant Type | Through-Spindle, Through-Bore & DIN Flange |
