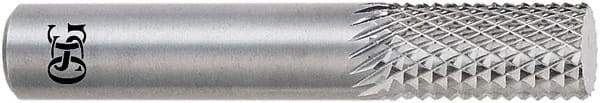

OSG - 3/16" Diam, 5/8" LOC, Plain End, Solid Carbide Diamond Pattern Router Bit - Right Hand Cut, 2" OAL, 3/16" Shank Diam, Use on Glass Reinforced Polyester, Graphite Composite Laminates, Kevlar, Phenolic Epoxy
Item #: 55474589
Brand: OSG
Model #: 640-1871
Exact Tooling IR#: 04
Features and Benefits
Plain (No End), also known as Safe End router bits, are used for edge routing and applications when no floor finish cuts are required.
Solid carbide is used for high performace applications. It is extremely heat resistant and used on cast iron, non-ferrous metals and other tough to machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on non-ferrous metals.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 4.76 |
| Cutting Diameter (Inch) | 3/16 |
| Cutting Diameter (Decimal Inch) | 0.1875 |
| End Type | Plain (No End) |
| Length of Cut (Decimal Inch) | 0.6250 |
| Length of Cut (Inch) | 5/8 |
| Shank Diameter (Inch) | 3/16 |
| Overall Length (Inch) | 2 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Material Application | Glass Reinforced Polyester; Graphite Composite Laminates; Kevlar; Phenolic Epoxy |
| Cutting Direction | Right Hand |
