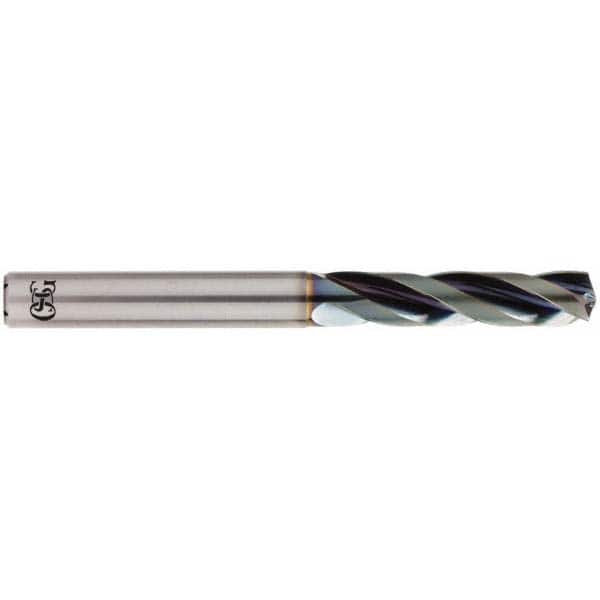

Screw Machine Length Drill Bit: 0.6693″ Dia, 140 °, Solid Carbide WD1 Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 5600
Item #: 55468599
Brand: OSG
Model #: 8661700
Product Specifications
| Drill Bit Size (mm) | 17.00 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | WD1 |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 3 |
| Shank Diameter (Decimal Inch) | 0.6693 |
| Drill Bit Size (Decimal Inch) | 0.6693 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Shank Diameter (mm) | 17.00 |
| Series | 5600 |
| Web Thinning | R-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Stub |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.000 to -0.027 mm |
| Flute Length (mm) | 85.00 |
| Drill Bit Size Range (Decimal Inch) | 0.6000+ |
| Drill Bit Size Range (mm) | 17.00+ |
