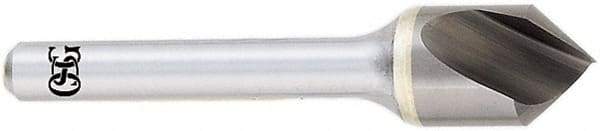

OSG - 3/4" Head Diam, 3/8" Shank Diam, 1 Flute 90° Solid Carbide Countersink - Bright Finish, Single End, Straight Shank, Right Hand Cut
Item #: 55468326
Brand: OSG
Model #: 700-7502
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastic and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Head Diameter (mm) | 19.05 |
| Head Diameter (Inch) | 3/4 |
| Head Diameter (Decimal Inch) | 0.7500 |
| Number of Flutes | 1 |
| Included Angle | 90 |
| Countersink Material | Solid Carbide |
| Countersink Finish/Coating | Bright |
| Shank Diameter (Inch) | 3/8 |
| Countersink Application | Countersinking |
| End Type | Single |
| Shank Type | Straight |
| Includes Pilot | No |
| Countersink Head Only | No |
| Cutting Direction | Right Hand |
| Material Application | Alloy Steel; Aluminum; Cast Aluminum; Cast Iron; Low Carbon Steel; Medium Carbon Steel |
