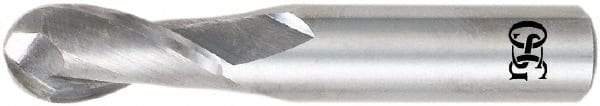

OSG - 25mm Diam, 38mm LOC, 2 Flute Solid Carbide Ball End Mill - TiAlN Finish, Single End, 102mm OAL, 25mm Shank Diam, Spiral Flute
Item #: 55448609
Brand: OSG
Model #: 402-9843-BN11
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 25.00 |
| Mill Diameter (Decimal Inch) | 0.9843 |
| Number of Flutes | 2 |
| Length of Cut (mm) | 38.00 |
| Length of Cut (Decimal Inch) | 1.4961 |
| Material | Solid Carbide |
| Overall Length (mm) | 102.00 |
| Shank Diameter (mm) | 25.00 |
| Finish/Coating | TiAlN |
| Single or Double End | Single |
| Helix Angle | 30.00 |
| Extended Reach | No |
| Flute Type | Spiral |
| Length Type | Regular |
| Series/List | 402BN |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
