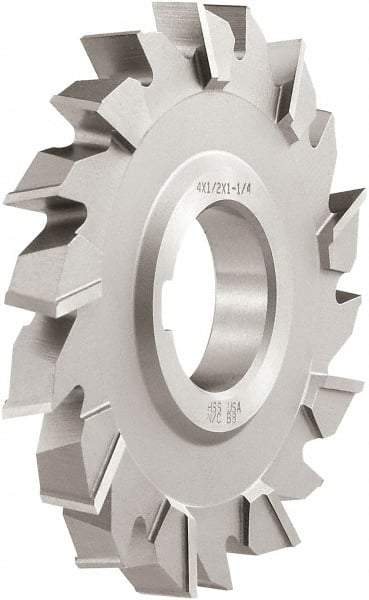

Keo - 4" Diam x 1/2" Width of Cut, 18 Teeth, High Speed Steel Side Milling Cutter - Staggered Teeth, TiCN Coated
Item #: 55419386
Brand: Keo
Model #: 83812
Exact Tooling IR#: 04
Features and Benefits
Staggered tooth cutters are used for deep slotting and heavy milling applications. They have fewer teeth than straight cutters for better chip removal from the workpiece.
High speed steel (HSS) provides good wear resistance. It is commonly used for general purpose applications on both ferrous and nonferrous materials.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steels, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Cutter Diameter (Inch) | 4 |
| Cutting Width (Inch) | 1/2 |
| Cutting Width (Decimal Inch) | 0.5000 |
| Tooth Configuration | Staggered |
| Material | High Speed Steel |
| Finish/Coating | TiCN |
| Arbor Hole Diameter (Inch) | 1-1/4 |
| Number of Teeth | 18 |
| Material Grade | M2 |
