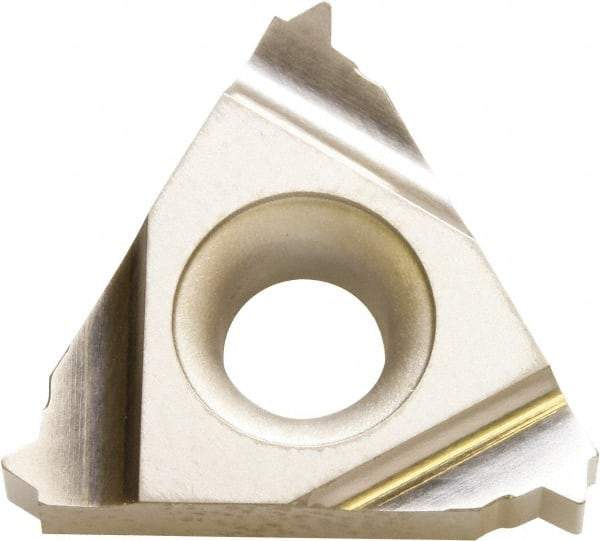

Kyocera - TNN32 Grade TC60, External ISO Threading Insert - 1.5mm Ext Pitch, Right Hand Insert, NbC Finish, Cermet
Item #: 55296537
Brand: Kyocera
Model #: 8803377
Exact Tooling IR#: 04
Features and Benefits
Niobium Carbide (NbC) is a ceramic coating that is heat and wear resistant. It offers high hardness and can be used on stainless steels and other materials. Ideal for heavy-duty applications.
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | TNN |
| Insert Size | 32 |
| Thread Type | External |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Thread Standard | ISO |
| Manufacturer's Grade | TC60 |
| External Pitch/TPI | 1.50 mm |
| Coating | NbC |
| Material | Cermet |
| ISO Number | TNN32ER150MTC60 |
| Corner Radius (mm) | 0.19 |
| Corner Radius (Decimal Inch) | 0.007480 |
| Width of Cutting Tip (mm) | 9.53 |
| Width of Cutting Tip (Decimal Inch) | 0.3752 |
| Thickness (mm) | 3.68 |
| Thickness (Decimal Inch) | 0.1449 |
| Series | TNN |
| Included Angle of Threading Tip | 60 |
| Manufacturers Catalog Number | TNN32ER-150M |
