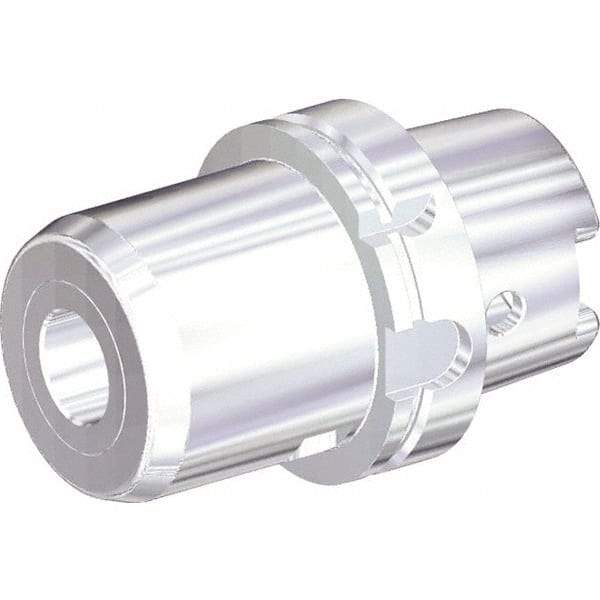

Kennametal - HSK63A Taper Shank, 3/4" Hole Diam, Hydraulic Tool Holder/Chuck - 52.5mm Nose Diam, 3-1/2" Projection, 41mm Clamp Depth, Through Coolant
Item #: 55237523
Brand: Kennametal
Model #: 5520958
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | HSK63A |
| Hole Diameter (Inch) | 3/4 |
| Hole Diameter (Decimal Inch) | 0.7500 |
| Nose Diameter (Decimal Inch) | 2.0670 |
| Nose Diameter (mm) | 52.50 |
| Projection (Decimal Inch) | 3.5000 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 41.00 |
| Clamping Depth (Decimal Inch) | 1.618 |
| Overall Length (mm) | 120.80 |
