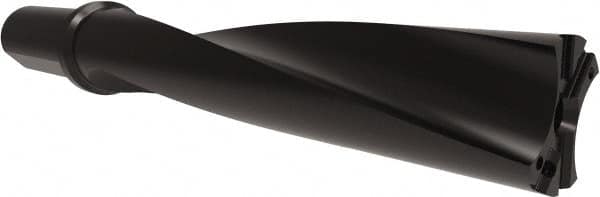

Allied Machine and Engineering - Series APX 57, 5xD, 2" Shank Diam, Drill Body - 14.5156" Drill Body Length to Flange, W5705H Toolholder, 19.0156" OAL, 14.5156" Drill Body Length, Weldon Flat Shank, Through Coolant
Item #: 55205991
Brand: Allied Machine and Engineering
Model #: W5705H-200F
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | APX 57 |
| Drill Depth by Diameter Ratio | 5xD |
| Shank Diameter (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Drill Body Length to Flange (Decimal Inch) | 14.5156 |
| Toolholder Style | W5705H |
| Overall Length (Decimal Inch) | 19.0156 |
| Gage Length (Decimal Inch) | 14.5156 |
| Shank Type | Weldon Flat |
| Shank Length (Decimal Inch) | 4.5000 |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Size (Inch) | 1/4 |
