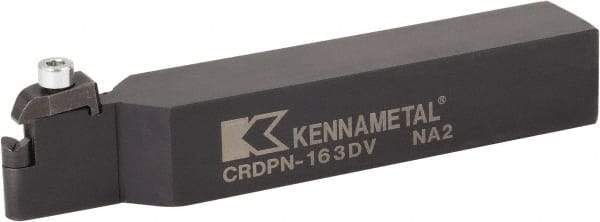

Kennametal - CRDP, Neutral Cut, 0° Lead Angle, 1-1/4" Shank Height x 1-1/4" Shank Width, Neutral Rake Indexable Turning Toolholder - 6" OAL, R..V45 Insert Compatibility, Series V-Bottom Round
Item #: 55191753
Brand: Kennametal
Model #: 3641597
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | CRDP |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | V-Bottom Round |
| Lead Angle | 0 |
| Shank Width (Inch) | 1-1/4 |
| Shank Width (mm) | 31.75 |
| Shank Width (Decimal Inch) | 1.2500 |
| Shank Height (Inch) | 1-1/4 |
| Shank Height (mm) | 31.75 |
| Shank Height (Decimal Inch) | 1.2500 |
| Overall Length (Inch) | 6 |
| Overall Length (mm) | 152.40 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | R..V45 |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 15.77 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6210 |
