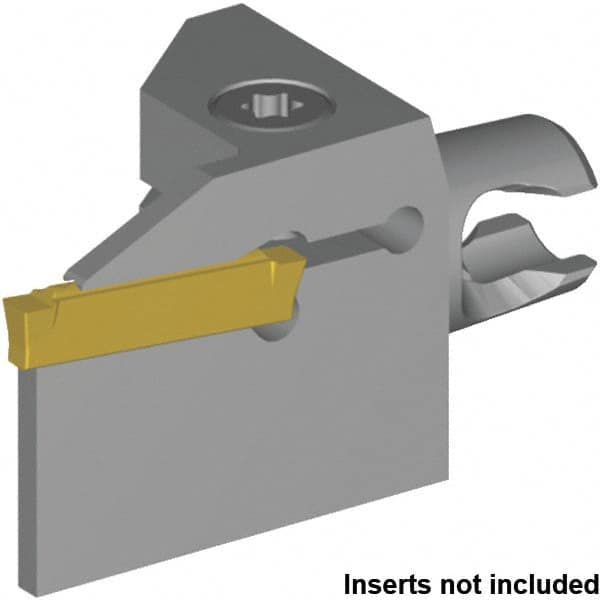

Kennametal - A4G0150M01U01B Insert, 30mm Head Length, 1.5mm Min Groove Width, Modular Grooving Blade Holder Head - Neutral Cut, System Size KM16, Series A4
Item #: 55174718
Brand: Kennametal
Model #: 3377284
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM16 |
| Series Name | A4 |
| Cutting Direction | Neutral |
| Modular Head Style | Blade Holder Head |
| Insert Style | A4G0150M01U01B |
| Head Length/Projection (mm) | 30.00 |
| Head Length/Projection (Decimal Inch) | 1.1811 |
| Through Coolant | NonThrough Coolant |
| Center to Cutting Edge (mm) | 10.00 |
| Center to Cutting Edge (Decimal Inch) | 0.3937 |
| Minimum Depth of Cut (mm) | 13.50 |
| Minimum Depth of Cut (Decimal Inch) | 0.5315 |
| Maximum Groove Width (mm) | 1.50 |
| Maximum Groove Width (Decimal Inch) | 0.0591 |
| Complete Insert Compatibility | A4G0150M01U01B |
| Minimum Groove Width (mm) | 1.50 |
| Minimum Groove Width (Decimal Inch) | 0.0591 |
| Maximum Depth of Cut (mm) | 13.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.5315 |
