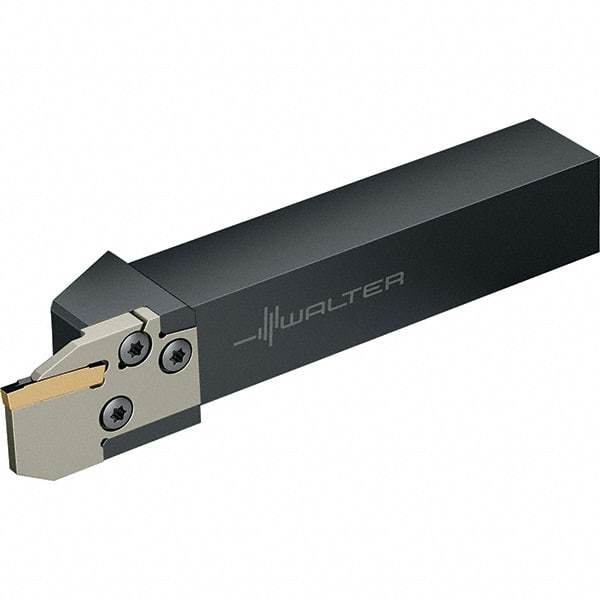

Walter - External Thread, 0.472" Max Depth of Cut, 0.118" Min Groove Width, 6.012" OAL, Right Hand Indexable Grooving Cutoff Toolholder - 1" Shank Height x 1" Shank Width, GX16-2.. Insert Style, NCAE Toolholder Style
Item #: 55168439
Brand: Walter
Model #: 5028889
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4720 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Maximum Groove Width (Decimal Inch) | 0.1780 |
| Overall Length (Decimal Inch) | 6.0120 |
| Toolholder Style | NCAE |
| Insert Compatibility | GX16-2.. |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Screw |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2360 |
| Complete Insert Compatibility | GX16-2E300N02-CE4; GX16-2E300N02-CF5; GX16-2E300N02-CF6; GX16-2E300N030-GD3; GX16-2E300N030-UA4; GX16-2E300N030-UF4; GX16-2E300N03-GD3; GX16-2E300N03-GD6; GX16-2E300N03-UD6; GX16-2E300N03-UF4; GX16-2E300R/L6-CE4; GX16-2E300R/L6-CF5; GX16-2E300R/L6-CF6; GX |
