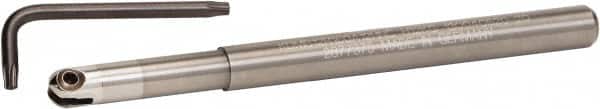

Kennametal - 20mm Cut Diam, 10mm Max Depth of Cut, 20mm Shank Diam, 140mm OAL, Indexable Ball Nose End Mill - 50mm Head Length, Straight Shank, KDMB Toolholder, KDMB 20.. Insert
Item #: 55146112
Brand: Kennametal
Model #: 2877378
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | KDMB 20.. |
| Toolholder Style | KDMB |
| Series | KDMB |
| Overall Length (mm) | 140.00 |
| Overall Length (Decimal Inch) | 5.5120 |
| Insert Holding Method | Screw |
| Toolholder Material | Carbide |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Tapered Neck | No |
| Number of Flutes | 2 |
| Head Length (mm) | 50.00 |
| Head Length (Decimal Inch) | 1.9685 |
| Neck Diameter (Decimal Inch) | 0.7087 |
| Maximum RPM | 40000 |
