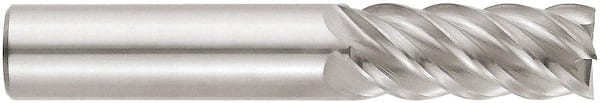

Niagara Cutter - 6mm, 13mm LOC, 6mm Shank Diam, 57mm OAL, 5 Flute, Solid Carbide Square End Mill
Item #: 55104418
Brand: Niagara Cutter
Model #: 17003809
Product Specifications
| Mill Diameter (mm) | 6.00 |
| Mill Diameter (Decimal Inch) | 0.2362 |
| Number of Flutes | 5 |
| Length of Cut (mm) | 13.00 |
| Length of Cut (Decimal Inch) | 0.5118 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Shank Diameter (mm) | 6.00 |
| Single or Double End | Single |
| Overall Length (mm) | 57.00 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 45.00 |
| Variable Helix | No |
| Variable Index | No |
| Flute Type | Spiral |
| Mill Diameter Tolerance (Decimal Inch) | +0.000 to -0.002 |
| Chipbreaker | No |
| Extended Reach | No |
| Overall Length Tolerance (Decimal Inch) | ?0.060 |
| Shank Diameter Tolerance (mm) | +0.000 to -0.008 |
| Series/List | S545M |
