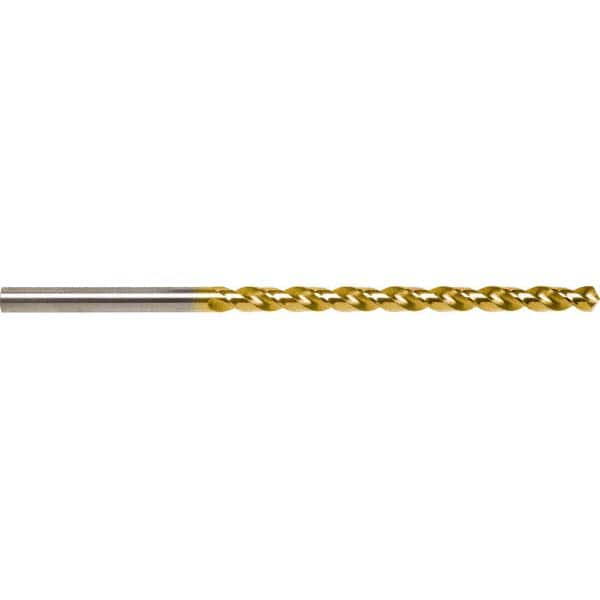

Taper Length Drill Bit: 0.3594″ Dia TiN Finish, RH Cut, Parabolic Flute, Straight Shank, Series 5537
Item #: 55085922
Brand: Guhring
Model #: 9055370091300
Product Specifications
| Drill Bit Size (Inch) | 23/64 |
| Tool Material | Cobalt |
| Coating/Finish | TiN |
| Flute Length (mm) | 115.00 |
| Shank Type | Straight |
| Point Type | Four Facet; Split |
| Flute Type | Parabolic |
| Coolant Through | No |
| Overall Length (mm) | 175.00 |
| Shank Diameter (Inch) | 23/64 |
| Shank Diameter (mm) | 9.13 |
| Drill Bit Size (Decimal Inch) | 0.3594 |
| Flute Length x Diamter Ratio | 10xD |
| Cutting Direction | Right Hand |
| Series | 5537 |
| Flute Length X Diameter Ratio | 10xD |
| Drill Bit Diameter Tolerance | +0.000 to -0.022 mm |
| Specification Number | DIN 340 |
