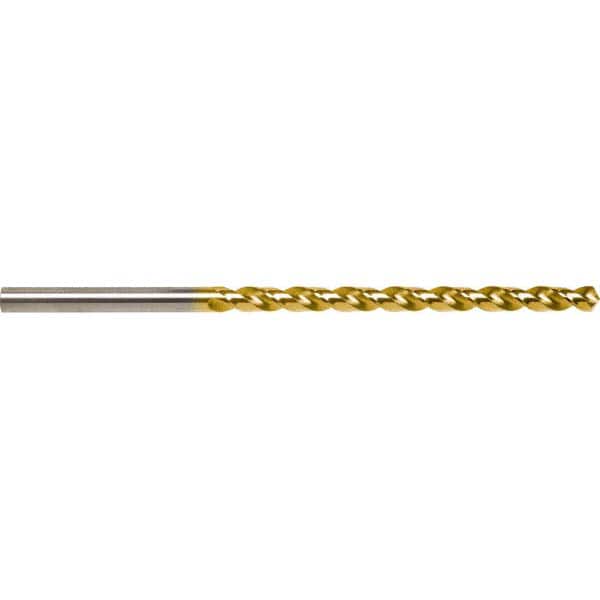

Taper Length Drill Bit: 118 ° Coated, RH Cut, Parabolic Flute, Cylindrical Shank, Series 5537
Item #: 55072359
Brand: Guhring
Model #: 9055370012000
Product Specifications
| Drill Bit Size (mm) | 1.20 |
| Tool Material | Cobalt |
| Coating/Finish | Coated |
| Flute Length (mm) | 41.00 |
| Shank Type | Cylindrical |
| Point Type | Split |
| Flute Type | Parabolic |
| Coolant Through | No |
| Drill Point Angle (Degrees) | 118 |
| Overall Length (mm) | 65.00 |
| Shank Diameter (mm) | 1.20 |
| Flute Length x Diamter Ratio | 10xD |
| Cutting Direction | Right Hand |
| Series | 5537 |
| Flute Length X Diameter Ratio | 10xD |
| Maximum Drilling Depth (Decimal Inch) | 1.5430 |
| Maximum Drilling Depth (mm) | 39.20 |
| Shank Length (mm) | 24.00 |
| Drill Bit Diameter Tolerance | +0.000 to -0.014 mm |
| Web Thinning | Web-Thinned |
| Threaded Shank | No |
| Standards | DIN 338 |
| Specification Number | DIN 340 |
