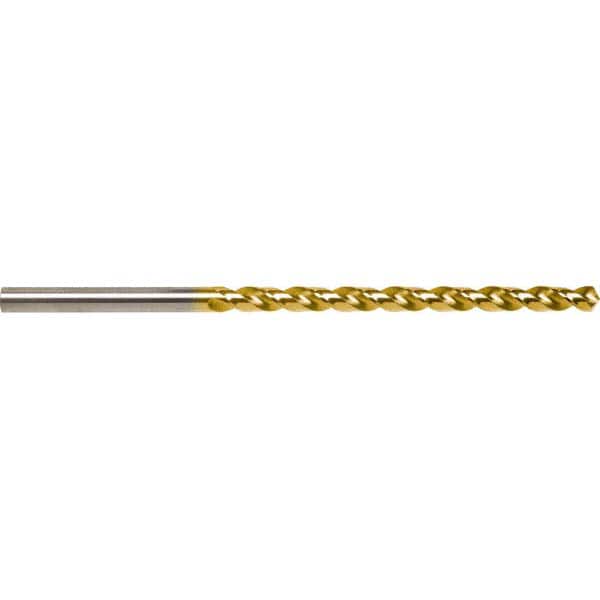

Taper Length Drill Bit: 0.1285″ Dia, 118 ° Coated, RH Cut, Parabolic Flute, Cylindrical Shank, Series 5537
Item #: 55071963
Brand: Guhring
Model #: 9055370032600
Product Specifications
| Drill Bit Size (Wire) | #30 |
| Tool Material | Cobalt |
| Coating/Finish | Coated |
| Flute Length (mm) | 69.00 |
| Shank Type | Cylindrical |
| Point Type | Split |
| Flute Type | Parabolic |
| Coolant Through | No |
| Drill Point Angle (Degrees) | 118 |
| Overall Length (mm) | 106.00 |
| Shank Diameter (mm) | 3.26 |
| Drill Bit Size (Decimal Inch) | 0.1285 |
| Flute Length x Diamter Ratio | 10xD |
| Cutting Direction | Right Hand |
| Series | 5537 |
| Flute Length X Diameter Ratio | 10xD |
| Maximum Drilling Depth (Decimal Inch) | 2.5240 |
| Maximum Drilling Depth (mm) | 66.00 |
| Shank Length (mm) | 37.00 |
| Drill Bit Diameter Tolerance | +0.000 to -0.018 mm |
| Web Thinning | Web-Thinned |
| Threaded Shank | No |
| Standards | DIN 338 |
| Specification Number | DIN 340 |
