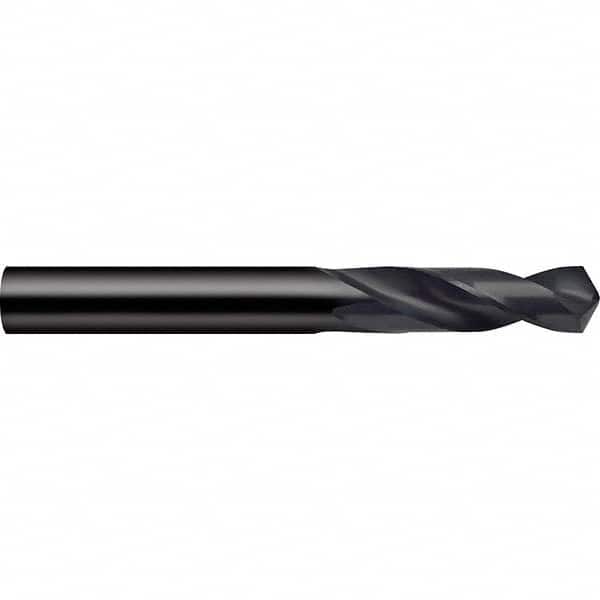

Screw Machine Length Drill Bit: 0.3504″ Dia, 118 °, High Speed Steel Oxide Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 223
Item #: 55069173
Brand: Guhring
Model #: 9002230089000
Product Specifications
| Drill Bit Size (mm) | 8.90 |
| Tool Material | High Speed Steel |
| Cutting Direction | Right Hand |
| Coating/Finish | Oxide |
| Drill Point Angle | 118 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.3504 |
| Drill Bit Size (Decimal Inch) | 0.3504 |
| Overall Length (mm) | 84.00 |
| Overall Length (Decimal Inch) | 3.3071 |
| Shank Diameter (mm) | 8.90 |
| Series | 223 |
| Web Configuration | Tapered |
| Drill Length Type | Stub |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.000 to -0.022 mm |
| Flute Length (mm) | 40.00 |
| Drill Bit Size Range (Decimal Inch) | 0.3500 to 0.4000 |
| Drill Bit Size Range (mm) | 8.00 to 9.50 |
| Specification Number | DIN 1897 |
| Specification Designation | DIN |
| Material Grade | M2 |
